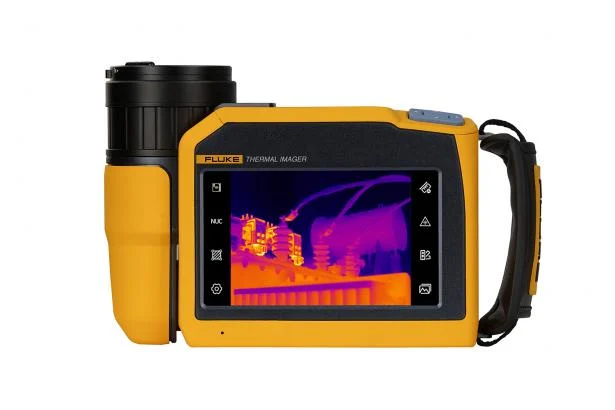

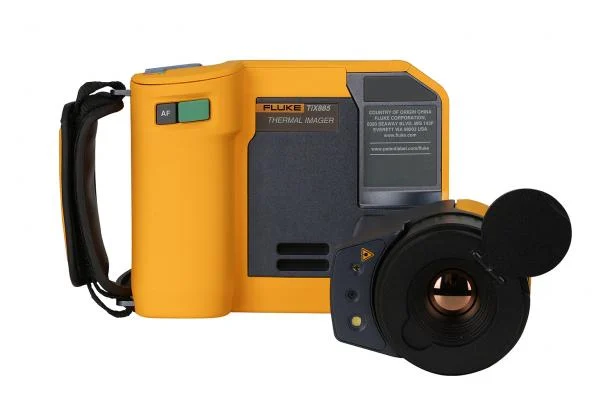

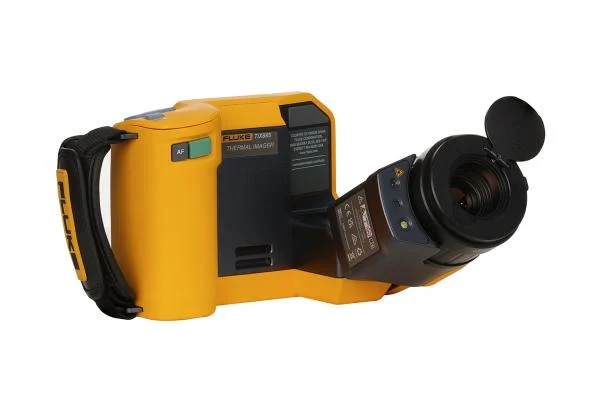

Fluke TiX870/875/880/885 Expert Series Thermal Camera

0 customer reviews

Sold: 0

640 x 480 resolution infrared camera with large 5.5-inch OLED responsive touch screen.
Provides temperature measurements from -40 °C to +1200 °C (-40 °F to 2192 °F)
Up to 1 to 35x continuous digital zoom
SmartView IR software to view, optimize, annotate, and analyze infrared images, and generate fully customizable professional reports.
⇩ Download the data sheet

ENQUIRY!

Product Description

Specifications: Fluke TiX870/875/880/885 Expert Series Thermal Camera

	TiX870	TiX875	TiX880	TiX885
Detector
IR Resolution	640 × 480
SuperResolution	–	–	Enhanced to 1280 × 960 pixels	Enhanced to 1280 × 960 pixels
Thermal Sensitivity* ( Under best case scenario)*	<35 mK @ 30 °C	<30 mK @ 30 °C	<25 mK @ 30 °C
Field of View (FOV)	25° × 19°
Spatial Resolution (IFOV)	0.68 mRad
Digital Zoom	1 to 25x		1 to 35x
Detector Type	Focal Plane Array (FPA), Uncooled Infrared Detector
Spectral Response	8 to 14 um
Lens Aperture	F 1.0
Lens Recognition	Auto
Minimum Focus Distance	0.2 m
Focus System	Auto/Manual
Frame Rate	9 Hz	30 Hz	9 Hz	30 Hz
Measurement and Analysis
Temperature Range	-40 °C to 700 °C	-40 °C to 700 °C	-40 °C to 1200 °C	-40 °C to 1200 °C
Temperature Measurement Range	-40 °C to 150 °C	-40 °C to 150 °C	-40 °C to 150 °C	-40 °C to 150 °C
	0 °C to 350 °C	0 °C to 350 °C	0 °C to 350 °C	0 °C to 350 °C
	0 °C to 700 °C	0 °C to 700 °C	0 °C to 700 °C	0 °C to 700 °C
			300 °C to 1200 °C	300 °C to 1200 °C
Temperature Accuracy	±2 °C or ±2% of reading, whichever is greater (normal temperature, 23 °C typical)
High/Low-Temperature Capture	Yes
Reference Temperature Compensation	Yes. The full-screen and measurement mark temperature are displayed as the difference between the actual temperature and the fixed temperature
Automatic Temperature Difference Calculation	Calculation of the difference between measurement marks or between a measurement mark and the fixed reference temperature
Custom Temperature Measurement Point	10 points	20 points	10 points	20 points
Custom Temperature Measurement Area	10 areas (circle or rectangle)	20 areas (circle or rectangle)	10 areas (circle or rectangle)	20 areas (circle or rectangle)
Line Temperature Measurement	10 lines	20 lines	10 lines	20 lines
Temperature Measurement Methods	The highest and lowest temperature can be set within an area, and the highest/lowest temperature point can be automatically located
Correction Settings	Emissivity, Reflected Temperature, Humidity, Ambient Temperature, Test Distance, Transmittance
Full-Screen Emissivity Correction	0.01 to 1.00, built-in common material emissivity table
Areal Emissivity Correction	Yes
Analysis in the Imager	Yes
Analysis Software	SmartView IR
Supported Languages	Simplified Chinese/English
Image Display
Display	OLED touchscreen, 170° visual range
Display Size	5.5 inches
Display Contrast	100000: 1
Display Resolution	1920 × 1080 pixels, 1080P UHD display
Digital Image Enhancement	Yes
Settings for On-Screen Display (OSD)	Yes. Users can define OSD, such as the maximum, minimum, average temperature, full-screen emissivity and reflected temperature
Settings for Information Display of Temperature Measurement Mark	Yes. Each temperature measurement mark can be set separately, such as emissivity
Built-in Digital Camera	5.0 MP
LED Torch/Flashligh	Yes
Picture-in-Picture (PIP)	Yes
Color Palettes	15
Manual Span Adjustment	Yes
Auto Span Adjustment	Yes
Minimum Temperature Span (in manual mode)	2 °C
Minimum Temperature Span (in auto mode)	4 °C
Video
Fully-Radiometric Infrared Video Recording	–	Recorded to the Imager and PC	–	Recorded to the Imager and PC
Fully-Radiometric Infrared Video Recording (Frame Rate Adjustable)	–	1 to 12 Hz	–	1 to 12 Hz
					Fully-Radiometric Infrared Video Streaming	–	USB 2.0	–	USB 2.0
Non-radiometric Infrared Video Streaming (HDMI output)	Transmission via HDMI
Auto Capture	Customized frame rate or interval
Professional Functions
Color Alarm (Isotherm)	Yes. High temperature alarm, low temperature alarm
QR Code Recognition	QR code supported	–	QR code supported	QR code supported
Voice Annotation	Yes. 200 s of voice annotation for every image
Text Annotation	Yes
Visible Light Image Association Technology	Yes
Storage and Transfer
Image Viewing	Thumbnail view navigation and view selection
Storage Medium	Built-in 16G flash + 128 high-speed SD card
SD Card	Included
IR Image File Format	Standard JPEG, including measurement data, which meets the data format verification requirements of the State Grid for Infrared Imagers
Video File Format	–	.mp4, .IS5	–	.mp4, .IS5
Visible Image File Format	Standard JPEG format
Audio	Yes
Transfer Interface	USB Type-C, HDMI, SD card, Bluetooth
Bluetooth Transfer	Yes. The saved files can be transferred to a PC via Bluetooth.
GPS	Yes	–	Yes	Yes
Remote Display Viewing	Yes. View thermal video streaming on a PC or a display terminal by connecting to the SmartView IR software on a PC via USB, or connecting to a display terminal via HDMI
Remote Control Operation	Yes. Through the SmartView IR Software
USB	USB 2.0
Antenna	Internal
Bluetooth Transfer
Frequency	2400 MHz to 2483.5 MHz
Output Power	<100 mW
Laser
Laser Standard	IEC 60825-1, Class 2; 650nm; <1mW
Power and Environment
Battery Type	Li-ion batteries (3 pcs)
Battery Life	> 3.5 hrs for continuous use @ ambient temperature of 25 °C
Weight	1550 g (with battery)
Dimensions	148 mm × 204 mm × 86 mm
Certification Standards	IEC 61326-1:Industrial Electromagnetic Environment; CISPR 11:Group 1, Class A
Tripod Mounting Base	UNC 1/4”-20 Standard Tripod Mounting Thread
Warranty	2 years
Recommended Calibration Period	2 years (assuming normal operation and aging)

Optional Lens
Tele-photo lens 7° TIX800 4X TELE, TIX800 7C TELE LEN	Tele-photo lens 12° TIX800 2X TELE, TIX800 12C TELE LEN	Wide lens 46° TIX800 2X WIDE, TIX800 46C WIDE LEN	Macro lens 50um TIX800 MACRO, TIX800 50UM MACRO LEN	Macro lens 25um TIX800 MACRO, TIX800 25UM MACRO LEN
5516646	5516631	5516654	5516668	5516679
Germanium	Germanium	Germanium	Germanium	Germanium
0.22 mrad	0.34 mrad	1.36 mrad
8° x 6°	12.0° x 9.°	50.0° x 39°	50 um	25 um
8° x 6°	12.0° x 9.°	50.0° x 39°	50 um	25 um	3 m	2 m	1 m	Fixed focus 77.5 mm	Fixed focus 9.4 mm
77.4 mm	50 mm	13 mm

The 1024×768 resolution new Fluke TiX1060 thermal imager has superior image quality and is well suited for R&D engineers and scientific researchers. With frame rate up to 25Hz, it retains more details and meets the testing needs of capturing fast changing temperature.

For outdoor applications, the TiX870/875/880/885 comes with auto-focus technology, allowing user to focus on target from a far distance. Coupled with 1 to 35x continuous digital zoom, user can view small details on distant targets clearly.

With a full 180-degree articulating lens, the Fluke TiX1060 Infrared Camera allows thermographers to easily navigate over, under, and around objects to preview and capture images with ease. Combined with the Super Resolution technology, the TiX1060 can achieve image resolution of 2048 × 1536 pixels.

It also comes with the Fluke SmartView® IR software, which provides a suite of advanced tools to view, optimize, annotate, and analyze infrared images, and generate fully customizable professional reports.
